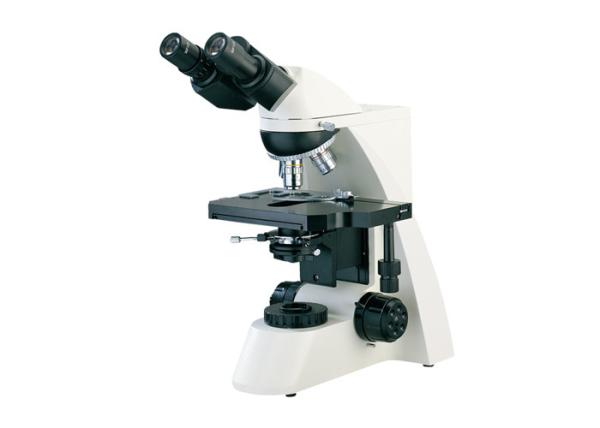

Kohler Illumination Science Lab Microscope With Wide Field Eyepieces

Name: Kohler Illumination Science Lab Microscope With Wide Field Eyepieces
Brand: VANCO
Price: 1 USD

Brand Name : VANCO

Model Number : VB-3000

Certification : CE

Place of Origin : MADE IN CHINA

MOQ : ONE

Price : NEGOTIABLE

Payment Terms : T/T

Supply Ability : 500PCS/Month

Delivery Time : ACCORDING TO ORDER QUANTITY

Packaging Details : STYROFOAM AND CARTON

Theory : Biological Microscope

Drawtube : Binocular

Magnification : 4X10X40X100X

Color : as picture

Product Name : Science Precision Biological Microscope

Type : Optical

Contact Now

VB3000 series biological microscopes4

VB3000series biological microscope is equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Features

▲ With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ Using Kohler illumination with 6V 20W halogen lamp with brightness control

Model	VB3000A	VB3000B
Eyepiece	WF10X(Φ20mm)
Objective	Plan achromatic PL 4X/0.10	Plan achromatic PL 4X/0.10
	Plan achromatic PL 10X/0.25	Plan achromatic PL 10X/0.25
		Plan achromatic PL 20X/0.40
	Plan achromatic PL 40X/0.65(Spring)	Plan achromatic PL 40X/0.65(Spring)
	Plan achromatic PL 100X/1.25(Spring, oil)	Plan achromatic PL 100X/1.25(Spring, oil)
Eyepiece tube	Binocular(Inclination of 30˚)
Focus system	Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece	Quadruple(Backward ball bearing inner locating)	Quintuple(Backward ball bearing inner locating)
Stage	Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)
Abbe condenser	N.A.1.25 Rack & pinion adjustable
Filter	Blue filter
	Frosted filter
Collector	For halogen lamp
Light source	6V 20W Halogen lamp with brightness control

Optional accessories

Name	Sort/Technique parameter		NO.
Eyepiece	WF16X(Φ11mm)		1051016
	Dividing10X(¦µ20mm),0.1mm/Div		1121010
Eyepiece tube	Trinocular	Inclination of 30˚	012007
Filter	Green filter		115002
	Yellow filter		115003
Condenser	Dark field	Dry	051001
		Immersion	051002
Phase contrast unit	Eyepiece	Centering telescope	110001
	Objectives	Phase contrast plan achromatic 10X/0.25 PHP	2420110
		Phase contrast plan achromatic 20X/0.40 PHP(Spring)	2420120
		Phase contrast plan achromatic 40X/0.65 PHP(Spring)	2420140
		Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)	2420111
	Turnplate phase contrast condenser(PH-¢ñ)		052001
	Turnplate phase contrast condenser(PH-¢ò)		052004
	Flashboard phase contrast condenser		052002
	Pull board phase contrast condenser		052003
Infinity optical system	Eyepiece tube	Binocular (Inclination of 30˚)	011104
		Trinocular (Inclination of 30˚)	012104
	Eyepiece	Centering telescope	110002
	Objectives	Infinity plan achromatic 4X/0.10	2060104
		Infinity plan achromatic 10X/0.25	2060110
		Infinity plan achromatic 20X/0.40	2060120
		Infinity plan achromatic 40X/0.65(Spring)	2060140
		Infinity plan achromatic 100X/1.25(Spring, oil)	2060111
		Infinity phase contrast plan achromatic 10X/0.25 PHP	2470110
		Infinity phase contrast plan achromatic 20X/0.40 PHP	2470120
		Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)	2470140
		Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)	2470111
CCD adapter	0.4X		810001
	0.5X		810004
	1X		810002
	0.5X with dividing 0.1mm/Div		810003
Camera	DV-1(With USB & video output)		800001
	DV-2(With USB output)		800003
	DV-3(With video output)		800005
Digital camera adapter	Digital camera adapter(A610,A620,A630,A640)		820001
Photograph unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece		840001
	4X Focusing photograph attachment		840002
	MD Adapter		840003
	PK Adapter		840004
Facility polarize	Polarizer(360° rotatable stage)		111001
	Analyzer		111103
